LSOS-H UEFA Standard High-End Stadium LED Display

Short Description:

LSOS-H UEFA-standard perimeter LED panel is designed for stadiums and sports events. It delivers up to 10000 cd/m² brightness, ghost-free high refresh visuals, soft player protection mask, sealed aluminum modules and common cathode power saving design. Fast lock seamless assembly and custom exit passage system ensure reliable performance for sports perimeter advertising.

Send email to us

Product Detail

Case Application

Download

Product Tags

Product Description

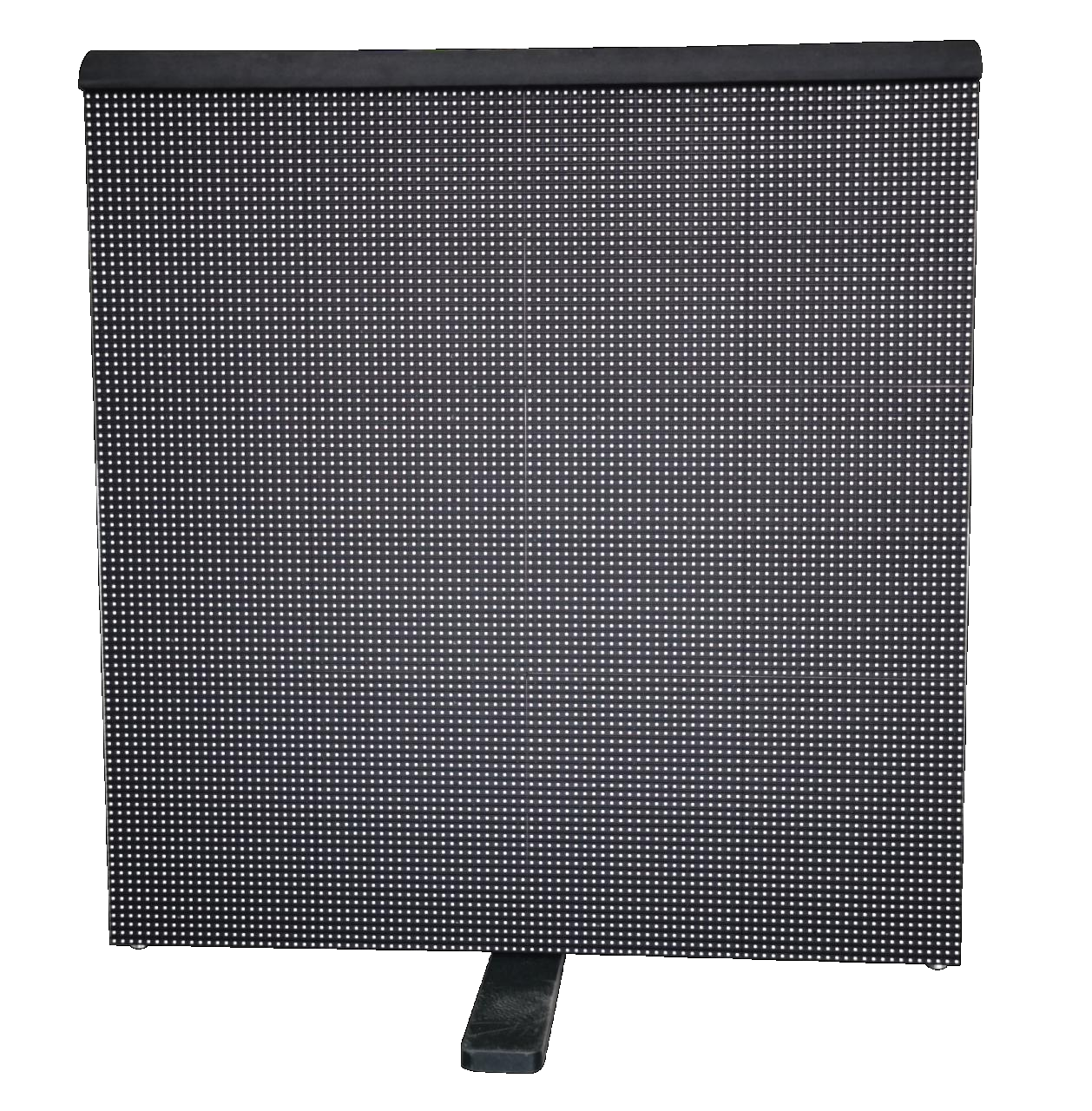

LSOS-H series LED panels are designed for stadiums and sport events.

European High-End Court 1600*900mm Box System Series (with Soft Face Mask and UEFA Standards)

Product Features

• High contrast ratio, High refresh rate, no ghosting

• High temperature resistance <60℃ Max

• Anti-corrosion cushion rubber on top

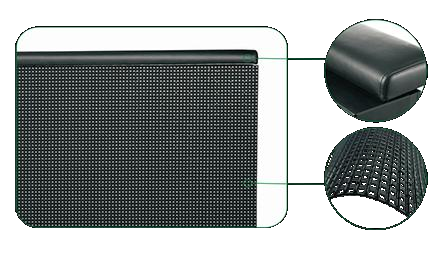

• Soft mask protects players & LED lamps with wider viewing angle

• Perfect alignment no gaps with fast lock

• Customized mechanical system for exit passageway

• Sealed aluminum module design,higher IP level

• Max brightness reach 10000cd/sqm is supported

• Energy saving design-Common Cathode Chips IC

• Cabinet is Perpendicular to the ground

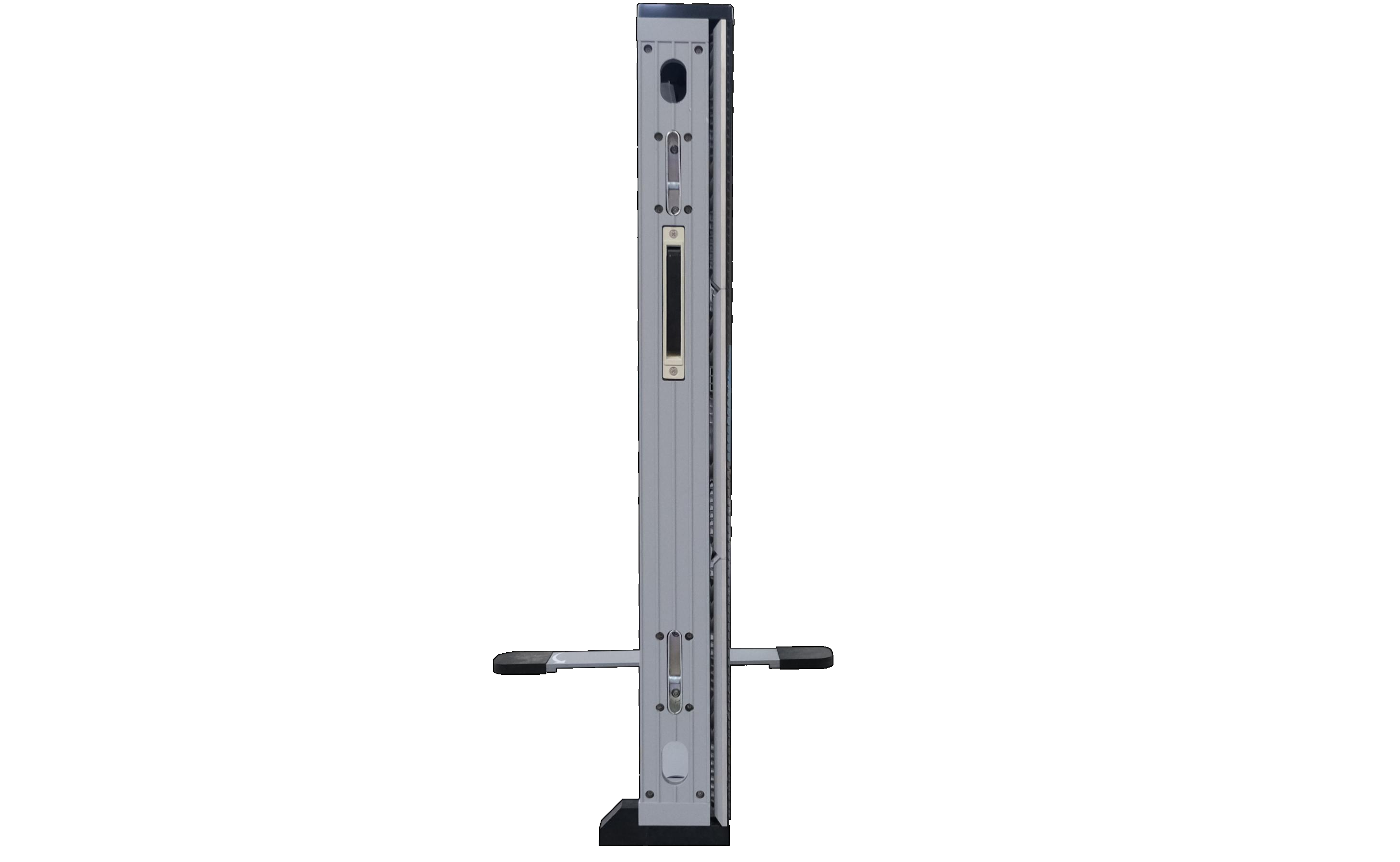

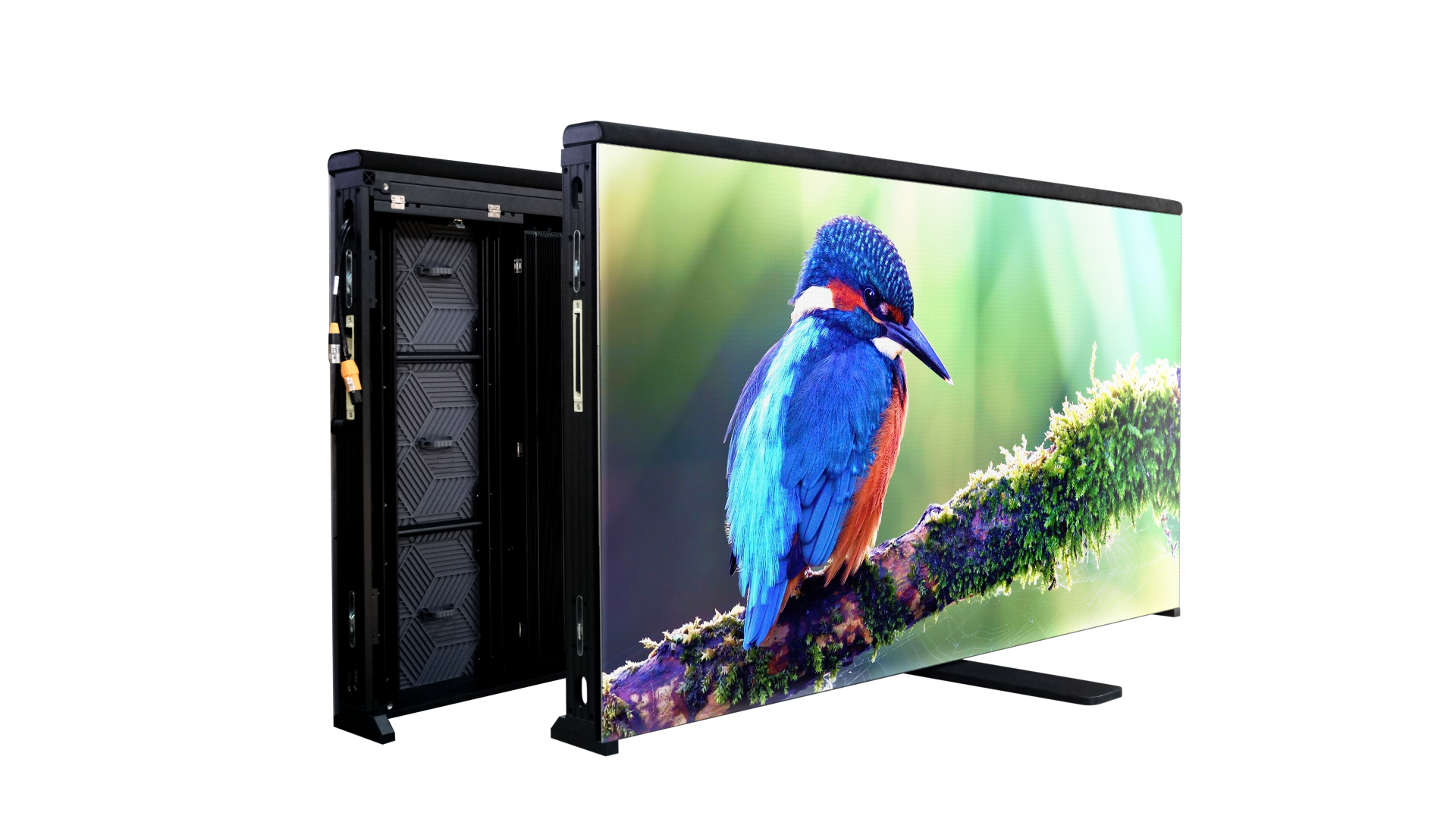

CABINET DESIGN

TECHNICAL PARAMETERS FOR PERIMETER LED

Parameter	LSOS6-H	LSOS8-H	LSOS10-H
Pixel Configuration	SMD 3 in 1 LED 2727	SMD 3 in 1 LED 2727	SMD 3 in 1 LED 2727
Pixel Pitch（mm）	6.25	8.33	10
Module size(mm) （W×H×D）	400x300 x20mm	400x300 x20mm	400x300 x20mm
Module resolution（W×H）	64*48	48*36	40*30
Cabinet Size（mm）（W×H×D）	1600 X 900 X 102	1600 X 900 X 102	1600 X 900 X 102
Cabinet resolution（W×H）	256X 144	192 X 108	160 X 90
Weight（kg/cabinet）	55	55	55
Processing	14-16 bit	14-16 bit	14-16 bit
Drive method	1/6 scan	1/3 scan	1/2 scan
White Balance Brightness (nits)	≥6000	≥6000	≥6000
Viewing Angle（Horizontal/Vertical °-up/down）	160 deg / (60 deg/40 deg)	160 deg / (60 deg/40 deg)	160 deg / (60 deg/40 deg)
Contrast Ratio	>6000:1	>6000:1	>6000:1
Max Power Consumption（W/m2）	580W	580W	580W
Avg Power Consumption（W/m2）	190W	190W	190W
Power Supply	AC100~240V（50/60Hz）	AC100~240V（50/60Hz）	AC100~240V（50/60Hz）
Refresh Rate（Hz）	>3840	>3840	>3840
IP Rating	IP69K/IP65	IP69K/IP65	IP69K/IP65
Lifetime （hrs）	100,000	100,000	100,000
Operation Temperature Range（℃）	-20 -- 60	-20 -- 60	-20 -- 60
Operation Humidity Range（RH）	10 -- 95%	10 -- 95%	10 -- 95%
Mask design	Soft	Soft	Soft
Emergency exit	Customized available	Customized available	Customized available
Certificate	CE CB ETL FCC	CE CB ETL FCC	CE CB ETL FCC
