Mesh LED Screen with Light Weight , Easy Maintenance & Energy Saving

Short Description:

LSM series LED panel are outdoor mesh LED screen composed of a light bar in the form of a grid, which are widely used on outdoor façade wall or ceiling as you know.

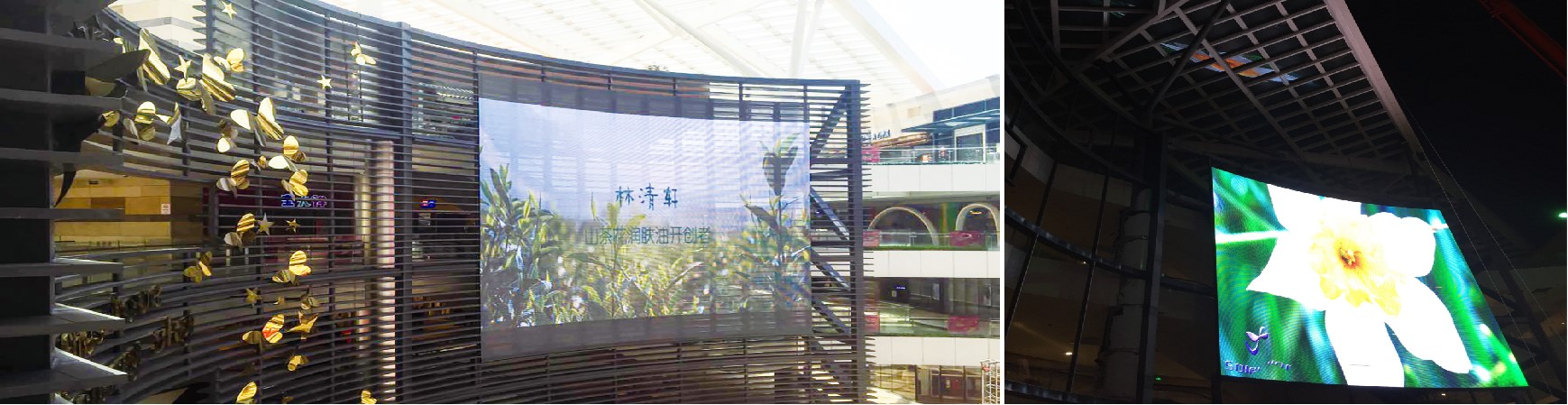

Our LED mesh curtains are flexible, energy-saving and easy to assemble, which means it can be rolled and curved in various ways or hung on the ceiling. They could be used in outdoor building facades, nightclubs, stage displays, theme bars,concerts and etc. With modular installation, our outdoor mesh LED screen can be installed and disassembled without extra instructions.

Send email to us

Product Detail

Technical Parameters

Case Appreciation

Download

Product Tags

Product Features

★ Front or rear access

★ High temperature resistance <60℃ Max

★ IP67 for front & rear side

★ High brightness up to 10000cd/㎡ Max(Customized)

★ Cabinet customized is available (Convex design or folded design)

★ LED strip mask is UV proof

★ Static design energy saving & higher refresh rate >3840Hz

Mesh LED Screen With Light Weight , Easy Maintenance & Energy Saving

It Adopts Direct-Inserted Lamp Beads With High Brightness And Stable Display Quality

It adopts direct-inserted lamp beads with high brightness and stable display quality. The screen breaks through the limitations of traditional advertising and combines the application of new media and advertising successfully. Each LED strip is made of aluminum alloy with good self-heat dissipation performance. The power, control and lighting materials are separated, No need for a dedicated cooling system like traditional LED displays.

Ideal For Distributors Requiring Easy Installation Displays

Ideal For Distributors Requiring Easy Installation Displays , LINSO Mesh is a complete line of LED outdoor display that delivers superb image quality, industry-leading power-efficient performance , reliable long life and super convenient installation.

Outdoor Mesh Led Weighs Less Than Traditional Led Displays By 60-80%

Outdoor mesh LED weighs less than traditional LED displays by 60-80% , which greatly reduce the strength and weight of the display infrastructure. Meanwhile it also has a strong wind resistance ability, effectively lowering the wind load. In addition, our Outdoor LED Mesh uses a unique electronic circuit design, which reduce the number of light bars for cost efficient purpose as well.

Previous: LSFL Series LED Panels Are Adopted With Interactive Systems For TV Studio, Commerical Center, Museum Etc.

Next: YEESO LED trailer Plays an Import Role in President Elections

Model

P6.25/12.5

P8.33/16.67

P10.41/12.5

P12.5

P12.5/25

P15.625

P15.625/25

P15.625/31.25

P16.67

P20

Pixel pitch

6.25mm*12.5mm

8.33mm*16.67mm

10.41mm*12.5mm

12.5mm*12.5mm

12.5mm*25mm

15.625mm*15.625mm

25mm*15.625mm

15.625mm*31.25mm

16.67mm*16.67mm

20mm*20mm

Pixel Composition

1*SMD2727

1*SMD3535

1*SMD2727

Brightness

1000 ~ 6000cd/ ㎡

1000 ~ 7000cd/ ㎡

Pixel density

12800

7200

7680

6400

3200

4096

2560

2048

3600

2500

Brightness

36%

48%

36%

50%

48%

50%

60%

48%

60%

Cabinet size

1000*500*76mm

1000*500*82mm

1000*500*76mm

1000*500*82mm

1000*1000*82mm

1000*500*82mm

1000*1000*92mm

1000*1000*82mm

Resolution

160*40

120*60

96*40

80*40

40*40

64*64

64*40

64*32

60*60

50*50

Weight

≤ 17KG/ ㎡

≤ 15KG/ ㎡

≤ 17KG/ ㎡

≤ 14KG/ ㎡

≤ 18KG/ ㎡

≤ 14KG/ ㎡

≤ 16KG/ ㎡

≤ 17KG/ ㎡

≤ 16KG/ ㎡

IP rating

IP67

Viewing angle

140° /120°

Viewing distance

>6m

>8m

>10m

>12m

>18m

>15m

>20m

>25m

>16m

>20m

Gray scale

16bit

Power Max

700W/ ㎡

640W/ ㎡

700W/m²

650W/ ㎡

600W/ ㎡

700W/ ㎡

Power Ave

100-400W/ ㎡

100-350W/ ㎡

100-400W/ ㎡

100-350W/ ㎡

100-400W/ ㎡

Refresh rate

3840Hz

Input power

AC100~ 240V, 50/60Hz

Scan

Static

Input signal

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION、HDMI、SDI、TV

Temperature

-30ºC ~60ºC ( Working)

Humidity

5%~85% ( Working) , 10%~90%( Storage )

Life

≥100,000 H

Cabinet material

Aluminum Alloy

Installation

Fixed installation

Model

P15.625

P15.625/25

P15.625/31.25

P16.67

P16.67/33.33

P20

P25

P25/50

P31.25

Pixel pitch

15.625mm*15.625mm

25mm*15.625mm

31.25mm*15.625mm

P16.67mm*P16.67mm

33.33mm*16.67mm

20mm*20mm

25mm*25mm

25mm*50mm

31.25mm*31.25mm

Pixel Composition

1xRGB

Brightness

1000 ~ 7000cd/ ㎡

1000 ~ 7500cd/ ㎡

1000 ~ 7000cd/ ㎡

1000 ~ 7500cd/ ㎡

Pixel density

4096

2560

2048

3600

1800

2500

1600

800

1024

Brightness

35%

60%

64%

40%

70%

52%

50%

75%

70%

Cabinet size

1000*1000*98mm

1000*1000*88mm

1000*1000*98mm

1000*1000*88mm

1000*1000*98mm

1000*1000*88mm

Resolution

64*64

40*64

32*64

60*60

30*60

50*50

40*40

40*20

32*32

Weight

≤ 25KG/ ㎡

≤ 18KG/ ㎡

≤ 16KG/ ㎡

≤ 19KG/ ㎡

≤ 18KG/ ㎡

≤ 19KG/ ㎡

≤ 16KG/ ㎡

IP rating

IP67

Viewing angle

120° /60°

Viewing distance

>15m

>20m

>25m

>16m

>25m

>20m

>25m

>35m

>30m

Gray scale

16bit

Power Max

460W/ ㎡

500W/ ㎡

600W/ ㎡

300W/ ㎡

430W/ ㎡

300W/ ㎡

240W/ ㎡

300W/ ㎡

Power Ave

80-300W/ ㎡

100-300W/ ㎡

100-350W/ ㎡

50-200W/ ㎡

80-250W/ ㎡

50-200W/ ㎡

50- 150W/ ㎡

50- 180W/ ㎡

Refresh rate

3840Hz

Input power

AC100~ 240V, 50/60Hz

Scan

Static

Input signal

RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION、HDMI、SDI、TV

Temperature

-30ºC ~60ºC ( Working)

Humidity

5%~95%( Working) , 10%~90%( Storage)

Life

≥ 100,000 H

Cabinet material

Aluminum Alloy

Installation

Fixed installation
