PRO Outdoor LED Display for Extremely High-tem & cold Applications

Short Description:

LSRSO series LED panels are designed and adopted with Nationstar lamps for high-tem & extremely cold areas with fanless, NON-AC.

Outdoor led screens are large billboards made to display advertising, video and some other digital content. They can be set in open-air area because of their modular assembling system. Its a kind of PRO version outdoor LED screen,especially popular in North America and European countries.

Send email to us

Product Detail

Case Application

Download

Product Tags

Product Description

Strong lightweight design ensures stability and reliability:

★ Solid and reliable water-proof performance

★ Powerful cooling ensures components longer service lives

★High quality power supplies ensure stability and efficiency

★ Operating Temperature Range: -40℃ to 60℃

★ High brightness lamp are used in the whole series, ensuring steady long-lasting performance

Product Features

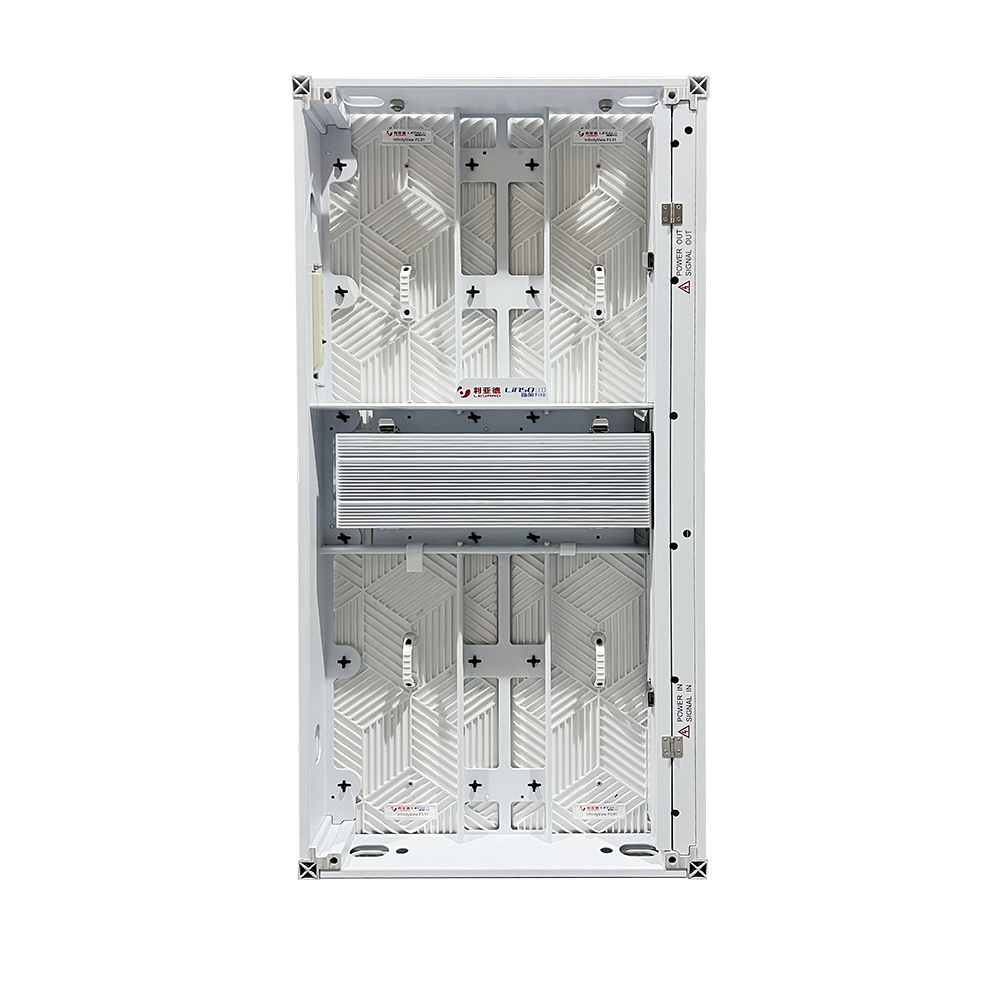

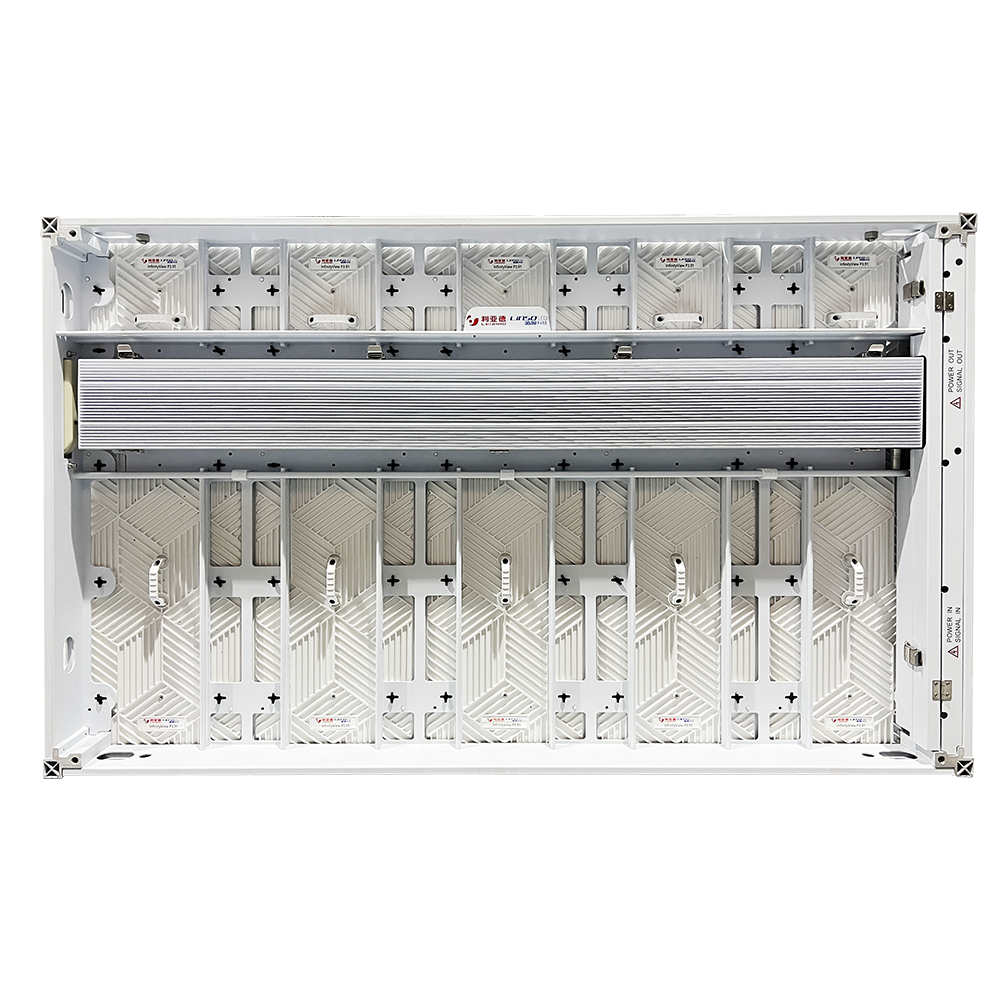

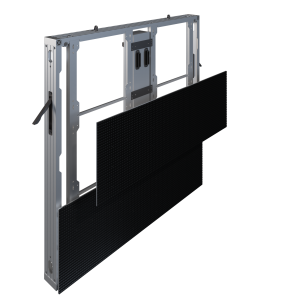

★ Light weight aluminum cabinet design

★ High temperature resistance <70℃ Max

★ IP68 for front side and IP65 for rear side

★ High brightness up to 8500cd/㎡

★ Average power consumption is 200W/sqm

★ Hub connection & wireless design

★ Strengthened 2mm thickness aluminum board against deformation

Fast And Convenient Installation, Minimum Labor For Front And Rear Maintenance

3 steps for front wall mounted installation

2 steps for rear installation

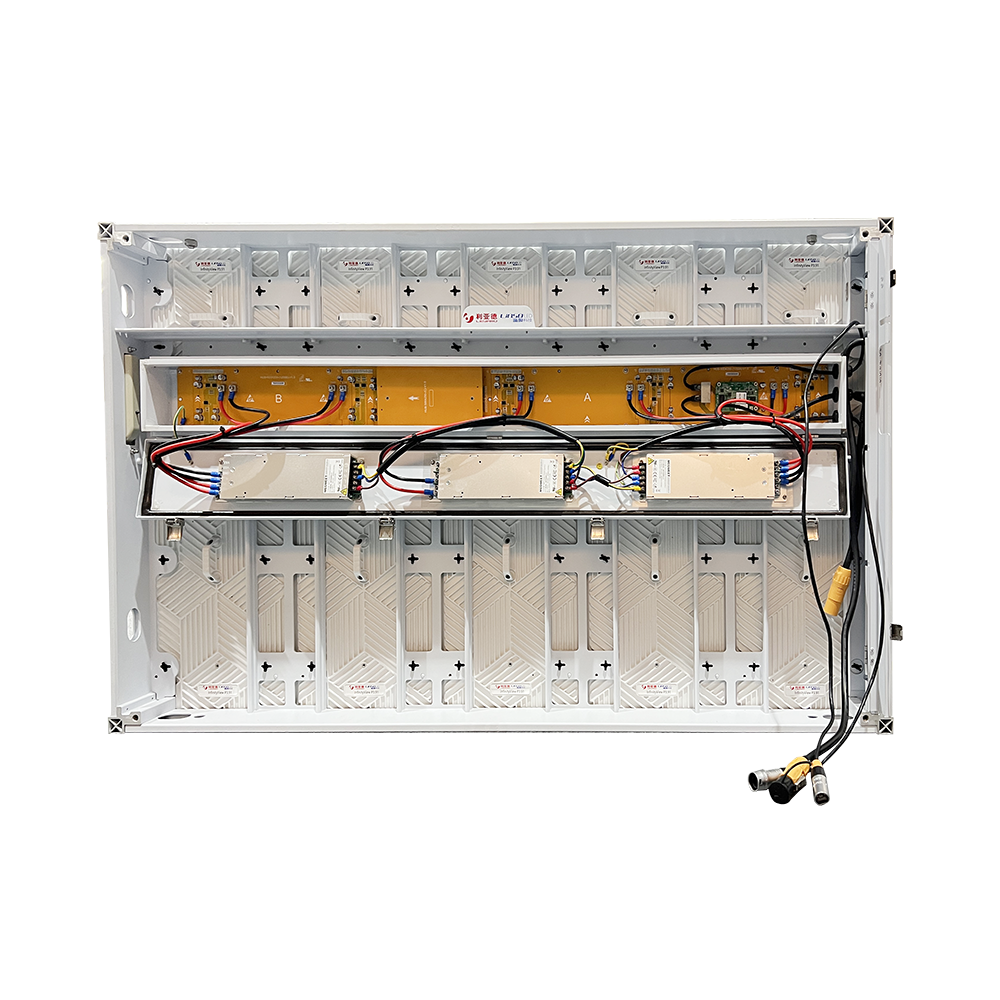

3 steps for components front maintenance

30 seconds front module disassembly

30 seconds rear module disassembly

Because of its good operation cost throughout the product’s lifecycle , our PRO LSRSO IS your first choice for mid-range and high-end DOOH LED display

Ultra High Brightness And Long-Lasting Anti-Attenuation Ability

LED lamp with ultra high brightness
High image quality even under direct sunlight
Long-lasting Anti-attenuation Ability

Ultra-Low Power Consumption Features a 40% Reduction

Common cathode circuit allows ultra-low power consumption

Fanless design further reduces energy consumption

Compared with previous products, power cost is reduced by nearly 40%

Vivid Picture With a Wide Field Of View For Advertising

Dynamic and vivid images

Stable and natural images

Diversified and saturated colors with smooth transitions

Technical Parameters

Pixel Pitch (mm)	2.9	3.9	4.8	6.67	8	10
LED Model	SMD1415	SMD1921	SMD1921	SMD2727	SMD2727/3535	SMD2727/3535
Module Size (W x H ) (mm)	250*250	250*500	250*500	320*480	320*480	320*480
Pixel Density (dots/m2)	112896	65536	43264	22500	15625	10000
Module Pixel / Panel (W*H)	84*84	64*128	52*104	48*72	40*60	32*48
Cabinet Size (W x H ) (mm)	500500mm/5001000m	5001000mm/10001000mm/1250*1000mm	5001000mm/10001000mm/1250*1000mm	640960mm/960960mm/1280*960mm	640960mm/960960mm/1280*960mm	640960mm/960960mm/1280*960mm
Cabinet Material	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum	Aluminum
Screen Weight(KG/m2)	32KG/m2	32KG/m2	32KG/m2	35KG/m2	35KG/m2	35KG/m2
Brightness Max (cd/m2)correction on	5000~6500cd	5500~7000cd	5500~7000cd	6000~8000cd	6000~10000cd	6000~10000cd
Grey Scale (bit)	≥14	≥14	≥14	≥14	≥14	≥14
Refresh Rate (Hz)	>3840	>3840	>3840	>3840	>3840	>3840
对比度/Contrast	>5000:1	>5000:1	>5000:1	>5000:1	>5000:1	>5000:1
Color Temperature (after calibration) (K)	3000-9500	3000-9500	3000-9500	3000-9500	3000-9500	3000-9500
Protection(F/R)	IP65/IP65	IP65/IP65	IP65/IP65	IP65/IP65	IP65/IP65	IP65/IP65
Working Voltage(V)	AC100-240V/50/60Hz	AC100-240V/50/60Hz	AC100-240V/50/60Hz	AC100-240V/50/60Hz	AC100-240V/50/60Hz	AC100-240V/50/60Hz
Scan model	21S	16S	13S	6S	4S	2S
Max Power Consumption (w/sqm)	550	550	550	600	600	600
Avr Power Consumption (w/sqm)	180	180	180	200	200	200
Operating Temperature/Humidity	-20~60℃ \| 10%~95%	-20~60℃ \| 10%~95%	-20~60℃ \| 10%~95%	-20~60℃ \| 10%~95%	-20~60℃ \| 10%~95%	-20~60℃ \| 10%~95%
Life Time (h)	100,000	100,000	100,000	100,000	100,000	100,000
Certificate	CE/CB/ROHS	CE/CB/ROHS	CE/CB/ROHS	CE/CB/ROHS	CE/CB/ROHS	CE/CB/ROHS

Case Applications

Outdoor Regular/Irregular LED Screen Display With Cost-Efficient Budget

LSOF series LED panels are designed for indoor/outdoor fixed applications and high resolution TV conception.

Outdoor led screens are large billboards made to display advertising, video and some other digital content. They can be placed in open-air area because of their modular assembling system

More Details

Outdoor Regular/Irregular LED Screen Display With Cost-Efficient Budget

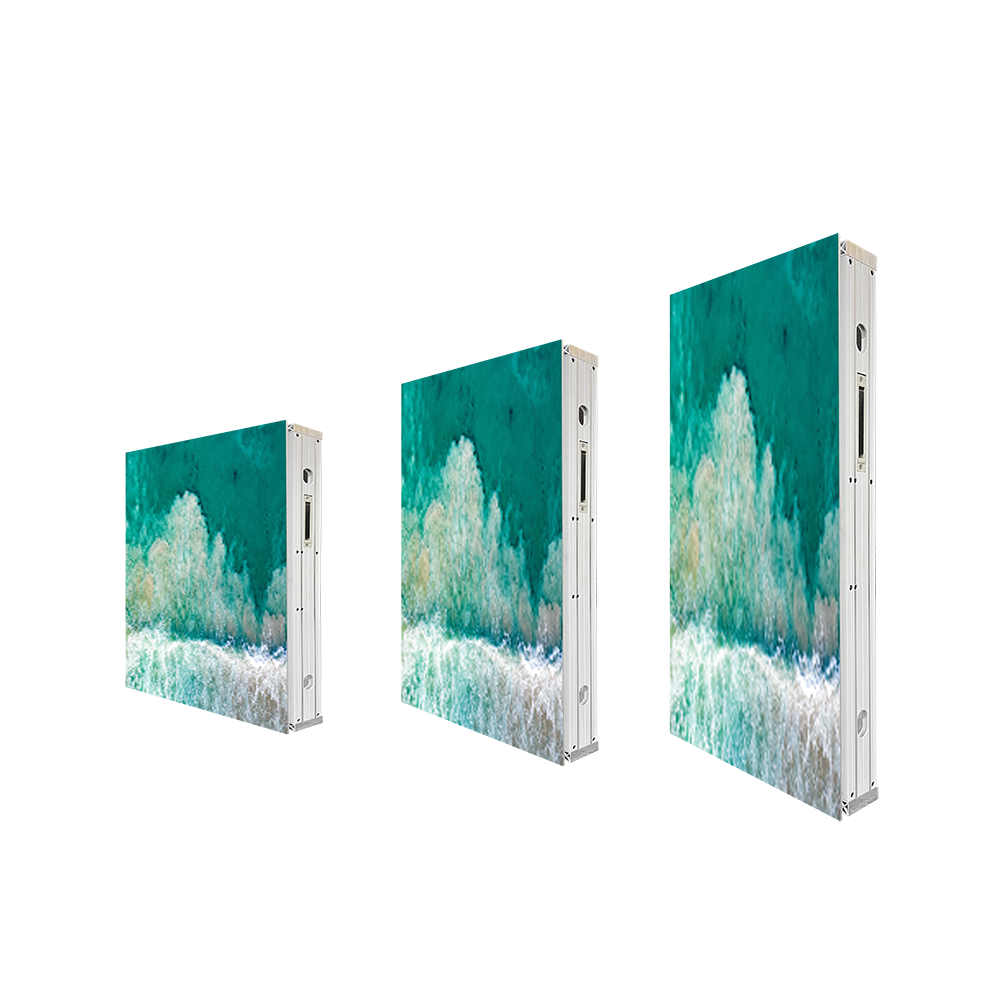

LSON series LED panels are designed for outdoor regular/irregular LED screen applications.

Outdoor led screens are large billboards made to display advertising, video and some other digital content. They can be placed in open-air area because of their modular assembling system.

More Details

Outdoor LED Panels For Sport Events With Stable Performance

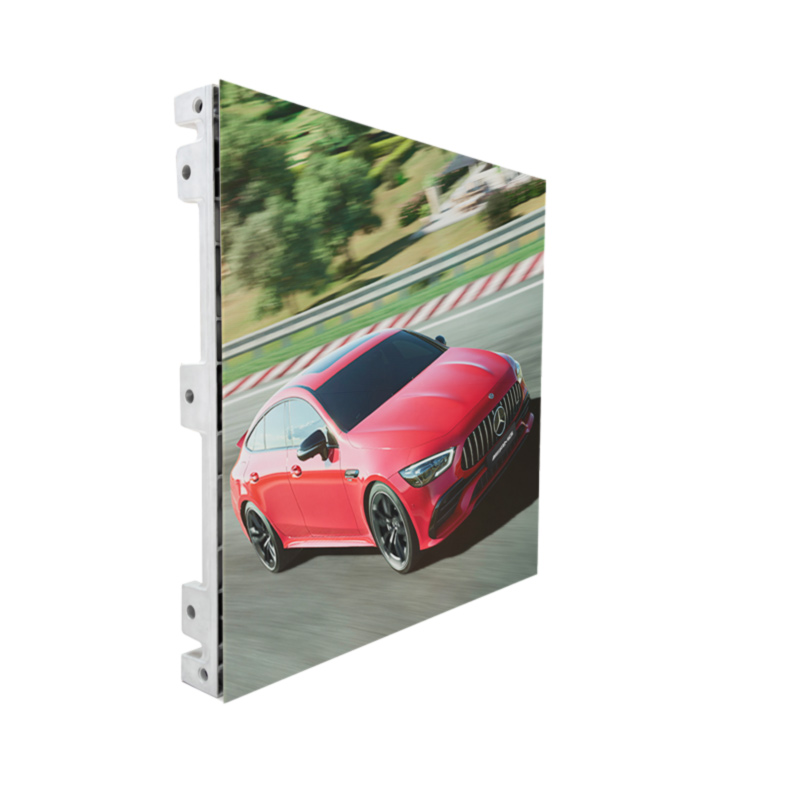

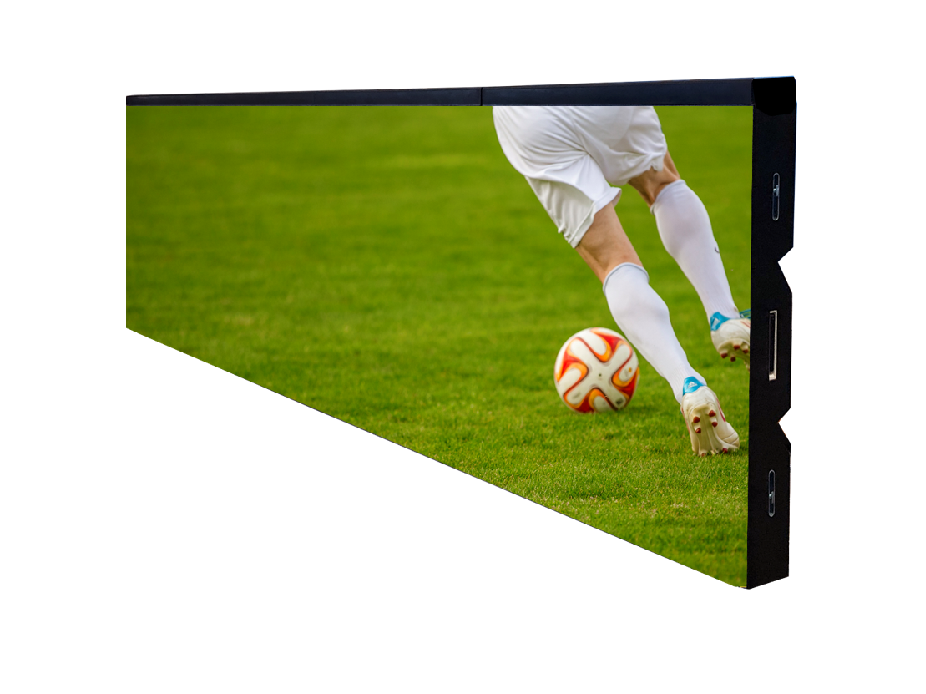

LSOS series LED panels are designed for sport events
